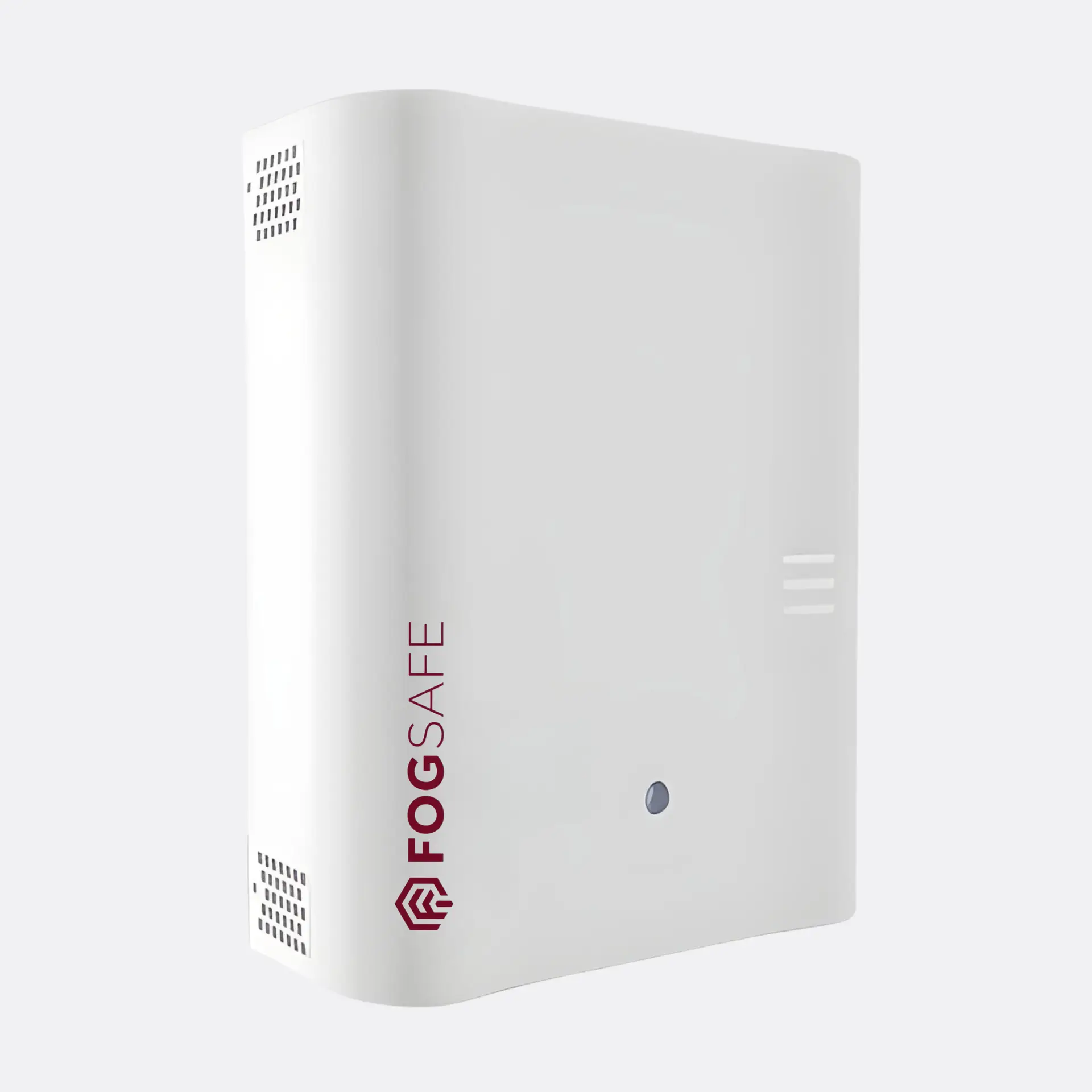

Modular 500
The Modular 500 is a security fog generator designed to protect spaces up to 500 m³ (17,500 ft³). When triggered, it rapidly fills the protected area with dense fog to immediately reduce visibility and stop intruders in their tracks.
Description
Features Summary:
- Designed to protect spaces up to 500 m³ (17,500 ft³)
- Rapid fog deployment that fills the protected area within seconds to stop intruders immediately
- ActiveCloud online platform for remote monitoring, diagnostics, and system management
- Seamless alarm integration with most security panels via dry-contact inputs
- Backup battery support ensures the system remains operational during power outages
- High-efficiency fog fluid system with disposable fluid bag lasting approximately 3–6 activations depending on fog duration
- Food-grade fog that is safe for people, pets, electronics, and merchandise and leaves no smell or residue after activation
- Low maintenance design with simple fluid bag replacement and system reset
- Compact wall-mounted design allowing flexible installation in discreet locations
Additional information
- Coverage
- For spaces up to 500 m³ (17,500 ft³)
- Mains Power
- 120V AC power input, 50/60 Hz, 1.8 A Max
- Power Consumption
- 48 W (during regular operation)
- Heating Power Consumption
- Up to 280 W (during heating period)
- Initial Heating Time
- Approx. ~2 hour
- Backup Battery
- Pb 2 Ah 12V battery for continued operation during power outages
- Fluid Capacity
- 1 × 750 ml FogSafe food-grade fluid bag
- Maximum Fog Output
- Up to 1,500 m³ per bag
- System Dimensions
- L 11.8″ x W 5.1″ x H 15.3″ (L 30cm x W 13cm x H 39cm)
- System Weight
- Approx. 9 kg (without bag)
- Power Output
- 12V auxiliary output (max 200 mA)
- International Certifications
- CSA, UL, CE, UKCA certified
